| Markenname: | KHJ |
| Modellnummer: | E1-IH807J |
Product Description

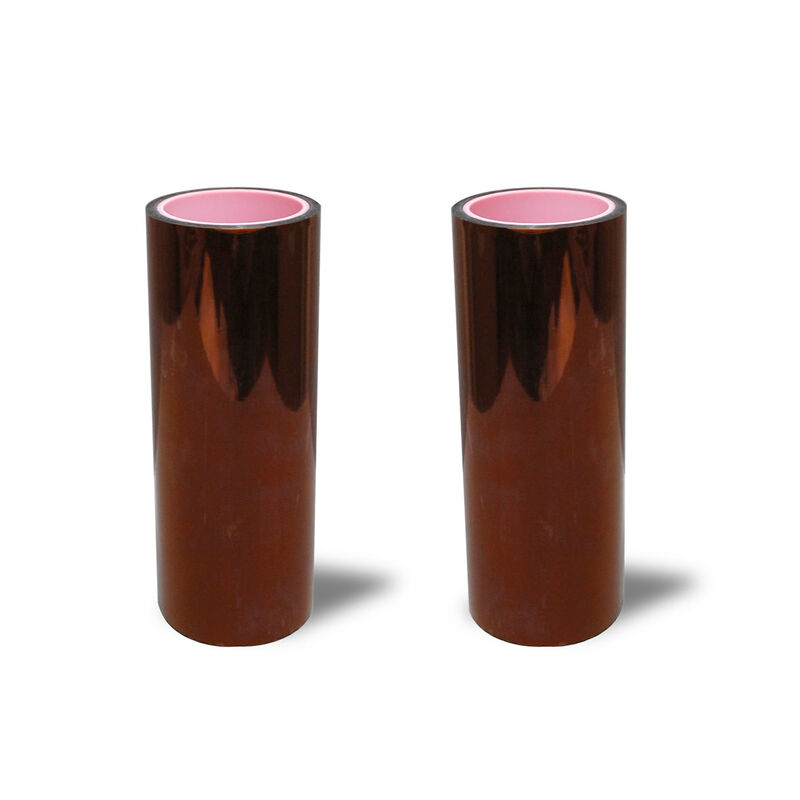

E1-IH807J is a polyimide film-backed silicone adhesive tape with antistatic performance and high temperature resistance.
Product Construction
Technical Data
| Test Item | Units | Test values | Test method |
| Backing Thickness: | mm | 0.075 | |
| Total Tape Thickness: | mm | 0.09 | |
| Adhesion to Steel: | N/25mm | ≥3 | GBT 2792-2014 |
| Tensile Strength at Break: | KN/M | ≥8 | GBT 30776-2014 |
| Elongation at Break: | % | ＞50 | GBT 30776-2014 |
| Upmost Working Temperature | °C | 270 |
5min Testing to Stainless steel plate |
| Surface Resistance | ohms | 10 5 - 10 10 |
Application
Masking of circuit boards during wave soldering or other electronic manufacturing processes.
